Pressure Ranges
0-25 to 0-1250 mm water column
0-1 to 0-50 inch water column

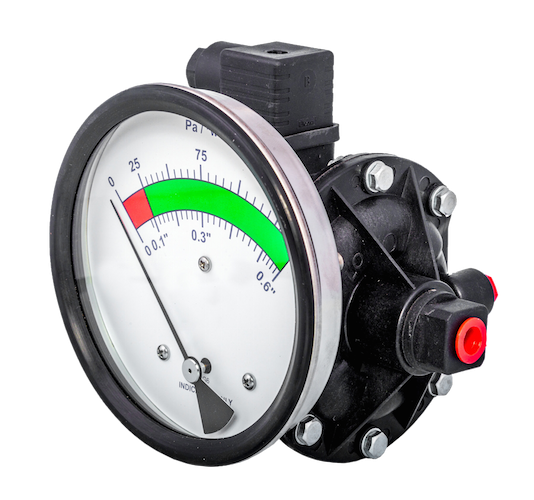

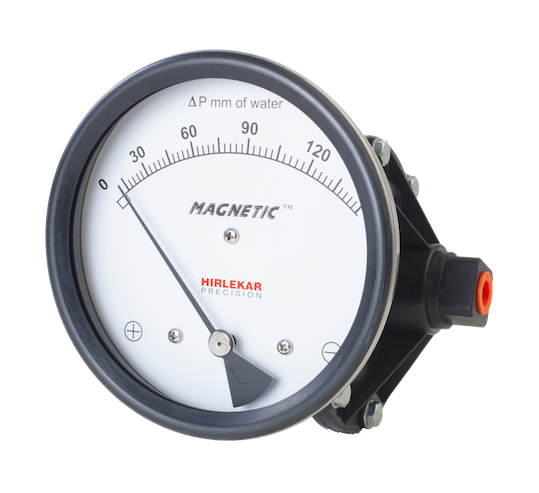

In this model, the movement of the convoluted diaphragm, and hence corresponding magnet, is converted into appropriate calibrated rotary movement of the pointer through a magnetic connection. This type of diaphragm model is used in applications where no migration of the media from high pressure side (HP) to low pressure side (LP) is permitted.
| Accuracy | ±3% of the FSD (Ascending) |
| Migration | Zero Migration from high to low port |
| Range | 0-25 to 0-1250 mm H2O 0-1 to 0-50 inch H2O |
| First marking on scale | 15% of the FSD |
| Sensing element | Diaphragm |
| Wetted Parts | Diaphragm, body material, SS 302 spring & ceramic magnet |
| Case Material | Stainless steel (SS 304) |
| Dial size | Inch: 4.56 mm: 112 |
| Mounting | Standard: Flush Optional: 2” pipe & surface mounting |
| Maximum working pressure | 2.4 bar / 35 psi |
| Maximum process temperature | 60°C/ 130°F |
| Body material | Engineering polymer |
| Seals | Buna-N, Viton & EPDM |
| Window | Standard: Float glass Optional: Toughened glass & acrylic glass |
| Connection | 1/8” NPT(F) |
| Porting | In-line & back |
| Over range protection | Up to the max. working pressure from high side only. |
| Protection for gauge & switch | IP 65 / NEMA-4 |
