Pressure Ranges
0-0.25 to 0-70 bar
0-5 to 0-1050 psi

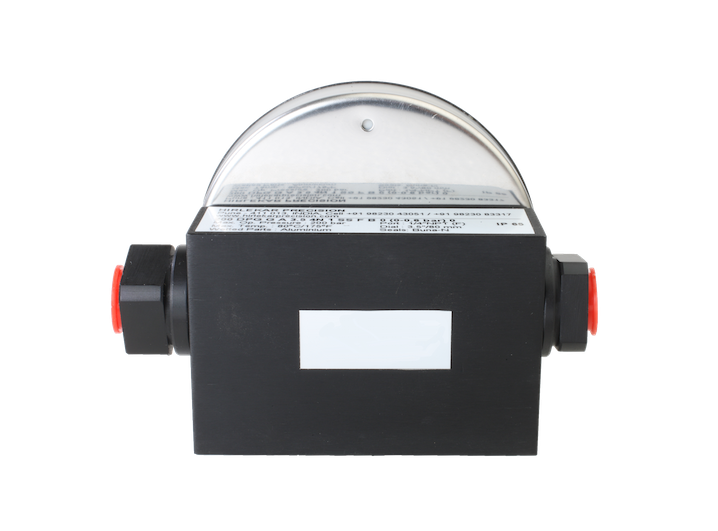

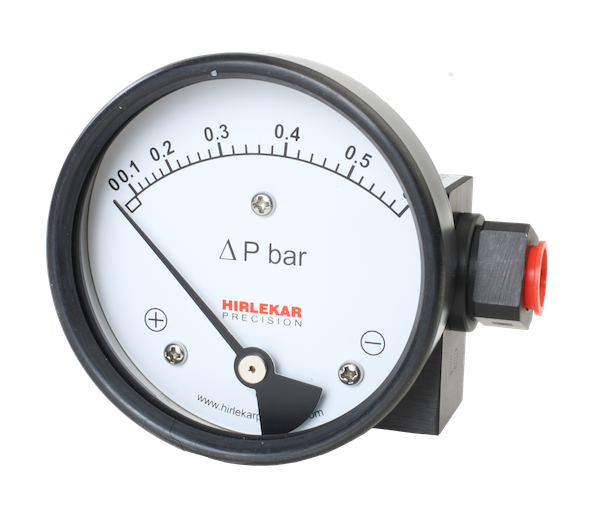

In the Hirlekar Precision Model 200 DPG, the movement of the piston is converted into appropriate calibrated rotary movement of the pointer through a magnetic connection. This type of piston model is used in applications where minor migration of the media from high pressure side (HP) to low pressure side (LP) is permitted.

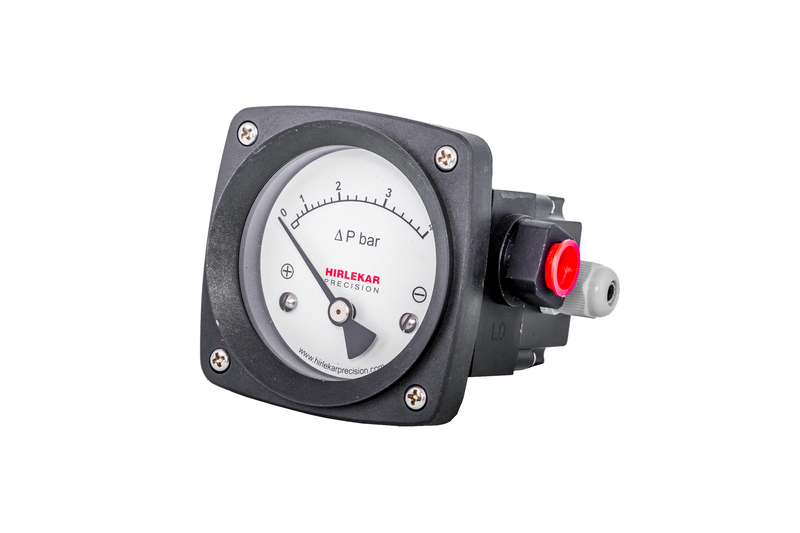

In case of condensation: New EP series engineering polymer case is recommended. In operating condition with frequent temperature fluctuations, condensation may occur on the glass affecting visibility. Hirlekar Precision’s EP Series Engineering polymer cases can be easily opened and cleaned on site.
| Accuracy | ±2% of the FSD (Ascending) |
| Migration | Minor from high to low port |
| Range | 0-0.25 to 0-70 bar 0-5 to 0-1050 psi |
| First marking on scale | 20% of the FSD |
| Sensing element | Piston |
| Wetted Parts | Body material, SS 302 spring, ceramic magnet & seals |
| Case Material | Stainless steel (SS 304) |
| Dial size | Inch: 2, 2.5, 3.5, 4.0, 4.5, 6.0 mm: 50, 63, 80, 100, 115, 150 |

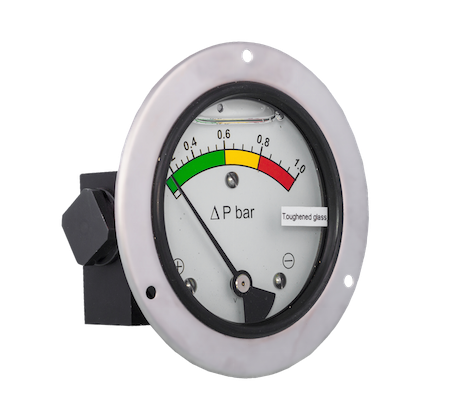

| Mounting | Direct, front flange, 2” pipe & surface mounting |
| Maximum working pressure | Aluminum & Brass: 200 bar SS & Monel : 400 bar |
| Maximum process temperature | 80°C/ 175°F |
| Body material | Aluminum, Brass, SS 316 & Monel |
| Seals | Buna-N, Viton & EPDM ‘O’ Rings |
| Window | Standard: Float glass Optional: Toughened glass, acrylic & safety glass |
| Connection | Standard: ¼” NPT(F) Std Optional: ¼” BSP (F) |
| Porting | In-line, rear, bottom, in-line & bottom |
| Over range protection | Up to the max. working pressure from high & low side |
| Protection for gauge & switch | IP 65 / NEMA-4 |
