Pressure Ranges
0-0.5 to 0-10 bar
0-7 to 0-150 psi
In the Hirlekar Precision Model D200 DPG, the movement of the piston is converted into appropriate calibrated rotary movement of the pointer through a magnetic connection. This type of piston model is used in applications where minor migration of the media from high pressure side (HP) to low pressure side (LP) is permitted.

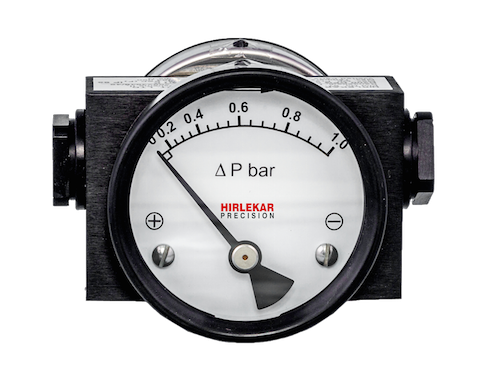

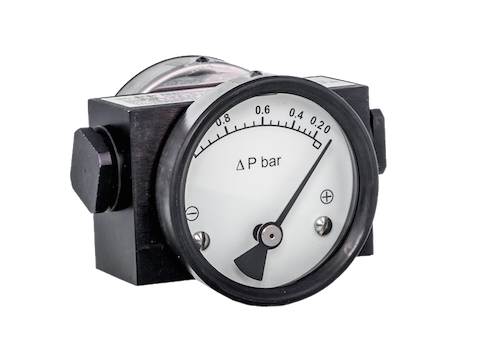

Double dials mounted on both sides of the main body can be viewed from two sides. This type of gauge is popular on cartridge filters.
| Accuracy | ±5% of the FSD (Ascending) |
| Migration | Minor from high to low port |
| Range | 0-0.5 to 0-10 bar 0-7 to 0-150 psi |
| First marking on scale | 20% of the FSD |
| Sensing element | Piston |
| Wetted Parts | Body material, SS 302 spring, ceramic magnet & seals |
| Case Material | Stainless steel (SS 304) |
| Dial size | Inch: 2.5 mm: 63 |
| Mounting | Direct |
| Maximum working pressure | 350 bar |
| Maximum process temperature | 80°C/ 175°F |
| Body material | Aluminum |
| Seals | Buna-N, Viton & EPDM ‘O’ Rings |
| Window | Standard: Float glass Optional: Toughened glass, acrylic & safety glass |
| Connection | Standard: ¼” NPT(F) Optional: ¼” BSP (F) |
| Porting | In-line, bottom |
| Over range protection | Up to the max. working pressure from high & low side |
| Protection for gauge & switch | IP 65 / NEMA-4 |
