Pressure Ranges
0-0.25 to 0-10 bar
0-3.5 to 0-140 psi

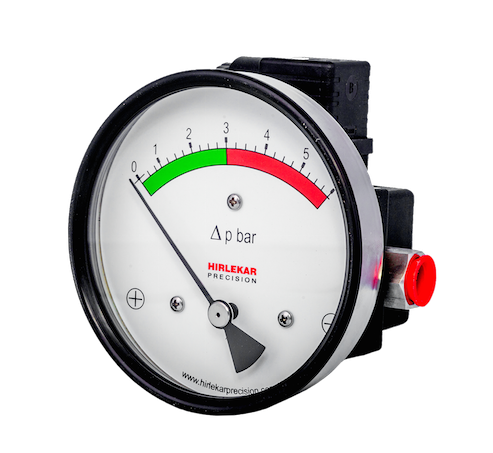

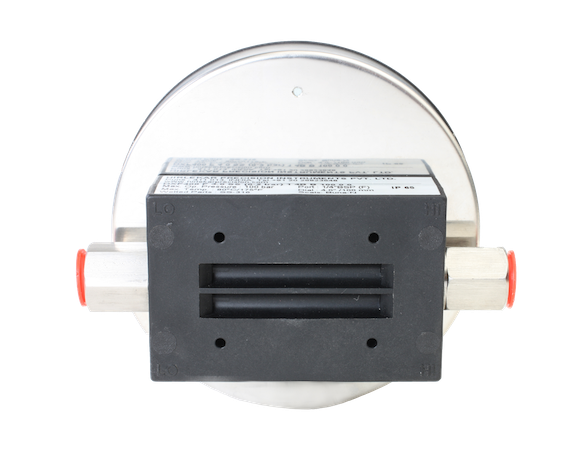

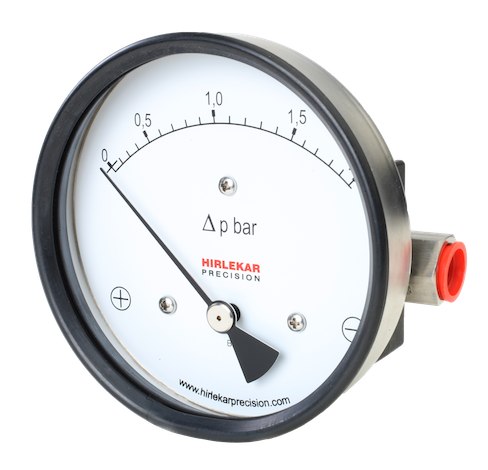

In the Hirlekar Precision Model DX 10, the movement of the piston (with compression spring) is converted into appropriate calibrated rotary movement of the pointer through a magnetic connection. This type of piston model is used in applications where minor migration of the media from high pressure side (HP) to low pressure side (LP) is permitted.
In case of condensation: New EP series engineering polymer case is recommended. In operating condition with frequent temperature fluctuations, condensation may occur on the glass affecting visibility. Hirlekar Precision’s EP Series Engineering polymer cases can be easily opened and cleaned on site.
| Accuracy | ±3% of the FSD (Ascending) |
| Migration | Minor from high to low port |
| Range | 0-0.25 to 0-10 bar 0-3.5 to 0-140 psi |
| First marking on scale | 15% of the FSD |
| Sensing element | Magnetic Piston with compression spring |
| Wetted Parts | SS 316, SS 302 compression spring, seals & ceramic magnet |
| Case Material | Stainless steel (SS 304) |
| Dial size | Inch: 3.5, 4.0 mm: 80, 100 |
| Mounting | Direct, front flange, 2” pipe & surface mounting |
| Maximum working pressure | 100, 250 & 400 bar |
| Maximum process temperature | 80°C/ 175°F |
| Enclosure | Engineering Polymer |
| Seals | Buna-N & Viton |
| Window | Standard: Float glass Optional: Toughened glass, acrylic & safety glass |
| Connection | Standard: ¼” BSP (F) Optional: ¼” NPT (F) |
| Porting | In-line |
| Over range protection | Up to the max. working pressure from high & low side |
| Protection for gauge & switch | IP 65 / NEMA-4 |
