Pressure Ranges
0-0.075 to 0-4 bar
0-1 to 0-60 psi

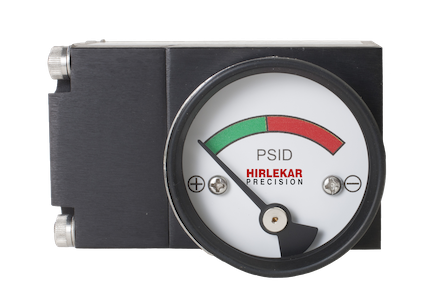

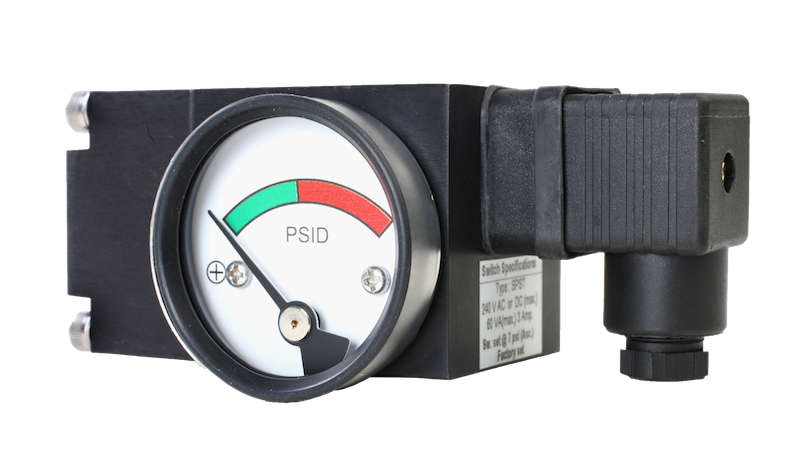

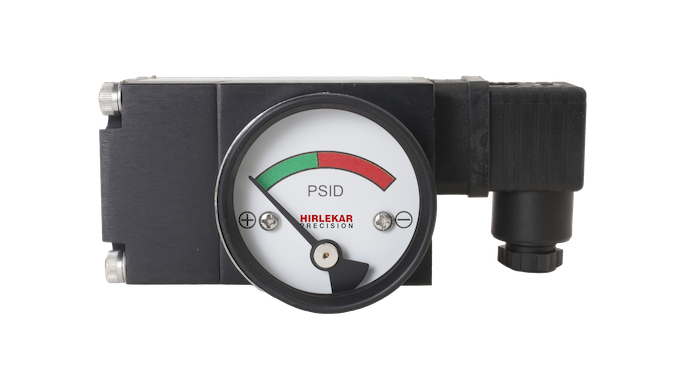

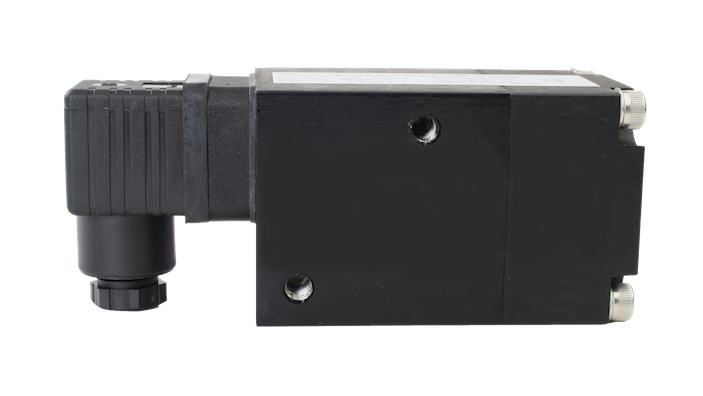

In the Hirlekar Precision Model 320 DGC, the movement of the diaphragm is converted into appropriate calibrated rotary movement of the pointer through a magnetic connection. This type of diaphragm model is used in applications where no migration of the media from high pressure side (HP) to low pressure side (LP) is permitted.
| Accuracy | ±5% of the FSD (Ascending) |
| Migration | Zero Migration from high to low port |
| Range | 0-0.075 to 0-4 bar 0-1 to 0-60 psi |
| Sensing element | Diaphragm |
| Wetted Parts | Diaphragm, body material, SS 302 spring & ceramic magnet |
| Case Material | Stainless steel (SS 304), Engineering Polymer |
| Dial size | Inch: 2, 2.5 mm: 50, 63 |
| Mounting | 2 M6 mounting holes |
| Maximum working pressure | 70 bar / 1000 psi |
| Maximum process temperature | 80°C/ 175°F |
| Body material | Aluminum, Brass & SS 316 |
| Seals/ Diaphragm | Buna-N, Viton & EPDM |
| Window | Standard: Float glass Optional: Toughened glass, acrylic & safety glass |
| Connection | Standard: 1/8” NPT(F) |
| Porting | Standard: Bottom Optional: Rear |
| Over range protection | Up to the max. working pressure from high side only. |
| Protection for gauge & switch | IP 65 / NEMA-4 |
| Dial Marking | Color bands only |
